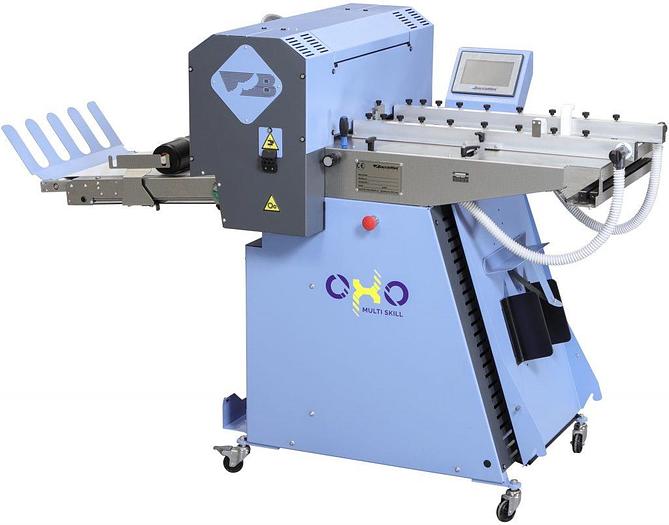

Bacciottini OXO MULTISKILL

Bacciottini OXO MULTISKILL

Contact us for price

Location:Čestlice, Czechia

Description

The BACCIOTTINI OXO MULTISKILL automatic creasing and folding machine with the possibility of perforation is a new compact device following the proven and successful machines of the PITSOP series. The device is characterized by high versatility, is equipped with a low non-stop vacuum loader in the basic configuration 50x70 cm (50x100cm) on the device can be bigded up to 600 gsm, perforated (tear perforation, 4 types) and fold up to 2 parallel fractures in weight 80 - 400 gsm. The control of the machine is very simple and intuitive using a 7 "touch screen with the possibility of storing orders in memory, the machine setup is fully automatic with a very simple tool change. The OXO device is characterized by a very high output of up to 9000 A4 / h (big + 1 warehouse)

Specifications

ManufacturerBacciottini
ModelOXO MULTISKILL
ConditionNew
Stock NumberV950000001744
TypeNew
Minimum format8x10 cm (creasing) 8x15 cm (folding)
Maximum format0x70 cm, 50x 100 cm (extended loader option)
Grammage80-600 gsm (creasing), 80 - 400 gsm (folding)
PerforationYES (4 species)
Number of warehouses2 parallel folds
Min. distance between bigy0,1 mm
Maximum number of bigs per sheet40
Productivity9000 A4 / h (1 warehouse + big)
Dimensions200x95x132 cm
Weight320 kg
