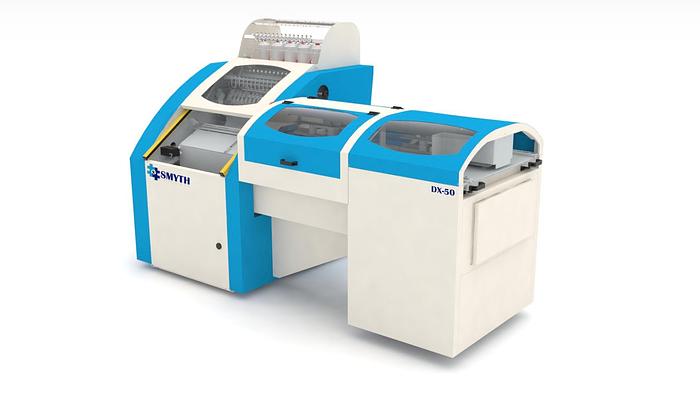

Smyth DX-50

Smyth DX-50

Contact us for price

Čestlice, Czechia

orCall +420 222 512 626

Description

Smyth DX-50 is a semi-automatic modular system with manual feeding, which allows the processing of digitally printed flat sheets into sewn books and grouping into sections. It is an ideal solution for the production of sewn books and catalogs, which consist of four-page inserts. Easy and fast operation is a benefit for a quick change of orders in low-cost book processing. Specially developed for small and medium orders with high format variability. The robust and proven design of the branded manufacturer guarantees reliability. Only one operator is needed to control and operate the entire process Cost-effective solution Very versatile and user-friendly system, extremely easy to use Quick and easy readjustment when changing orders

Specifications

ManufacturerSmyth
ModelDX-50
ConditionNew
TypeNew
Max and min. sheet format510 x 640/150 x 180 mm
Max and min. folder format510 (back) x 350 (width) mm / 125 (back) x 75 (width) mm
Max. mechanical speed18 cycles / min.
Number of stitches14
Stitch length18 mm
Range of weight50 - 150 gsm
Air requirementsmax. 200 Ni / min. at 5 bar
Electrical connection and consumption230V / 400V / 50Hz 3 phases, consumption 1.5 kW
Device weight650 kg
Device dimensions3,100 x 1,390 x 1,600 mm (L x W x D)
Max. a min. sheet format510 x 640/150 x 180 mm
Max. a min. folder format510 (back) x 350 (width) mm / 125 (back) x 75 (width) mm
Weight range50 - 150 gsm
Equipment weight650 kg
Equipment dimensions3,100 x 1,390 x 1,600 mm (L x W x D)
