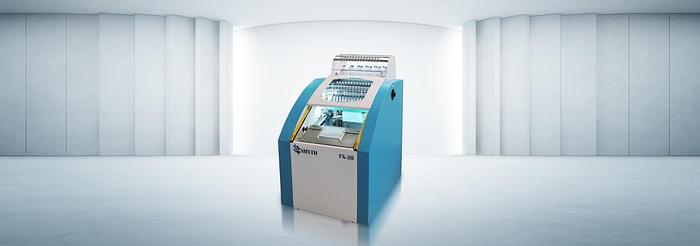

Smyth FX-30

Smyth FX-30

Contact us for price

Location:Čestlice, Czechia

Description

The Smyth FX-30 is a manual, highly simplified model of a front-loading sewing binding machine, specially designed for small orders. It is an ideal solution for on-demand book production, piece and sample production, and oversized book production for the ability to sew extremely large folders up to 510 x 550 mm. This feature is especially valued in the production of art books, photo albums, record books and other special publications. Easy and fast operation is a benefit for a quick change of orders in low-cost book processing. Specially developed for small and medium orders with high format variability. The robust and proven design of the branded manufacturer guarantees reliability. Manual feeding of front-input folders Excellent sewing quality with low operating costs Extremely easy to use, no maintenance required Quick and easy reconfiguration when changing orders

Specifications

ManufacturerSmyth
ModelFX-30
ConditionNew
Stock NumberV950000001825
TypeNew
Max. mechanical speed14 cycles / min.
Max and min. folder format510 (back) x 550 (width) mm / 125 (back) x 75 (width) mm
Number of stitches14
Stitch length18 mm
Range of weight50 - 150 gsm
Air requirementsmax. 200 Ni / min. at 5 bar
Max. a min. folder format510 (back) x 550 (width) mm / 125 (back) x 75 (width) mm
Weight range50 - 150 gsm
Equipment weight450 kg
Electrical connection and consumption230V / 400V / 50Hz 3 phases, consumption 0.75 kW
Device weight450 kg
Device dimensions1,050 x 1,390 x 1,600 mm (L x W x D)
Equipment dimensions1,050 x 1,390 x 1,600 mm (L x W x D)
