DUPLO PFI Blade B3 +

DUPLO PFI Blade B3 +

Contact us for price

Location:Čestlice, Czechia

Description

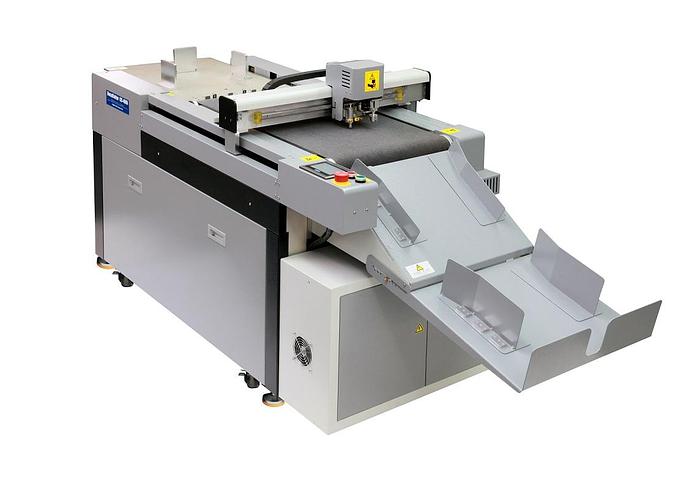

DUPLO PFI Blade B3 + is a new compact flatbed plotter with automatic suction loading and unloading using a sliding belt. The device is designed for low-cost orders associated with cutting, creasing and cutting stickers. The machine is equipped with a multifunctional head, where the tools are located: cutting knife, grooving knife and cutting tool. The maximum weight is 400 gsm. Accuracy is ensured by means of registration marks and a CCD camera, which enables the detection of QR codes, thus ensuring the possibility of automatic readjustment of the order. The machine is supplied with a DP DPC controller, including a computer, to control the machine.

Specifications

ManufacturerDUPLO
ModelPFI Blade B3+
ConditionNew
TypeNew
Maximum format400x600 mm (370x570 mm)
Maximum weight400 gsm
Maximum product height1,5 mm
Accuracy+/- 0.1 mm
Speedmax. 1m / s, approx. 30-45s / sheet according to complexity and number of uses per sheet
Loader capacity100 mm
Power consumption4kW
Power supply240V
