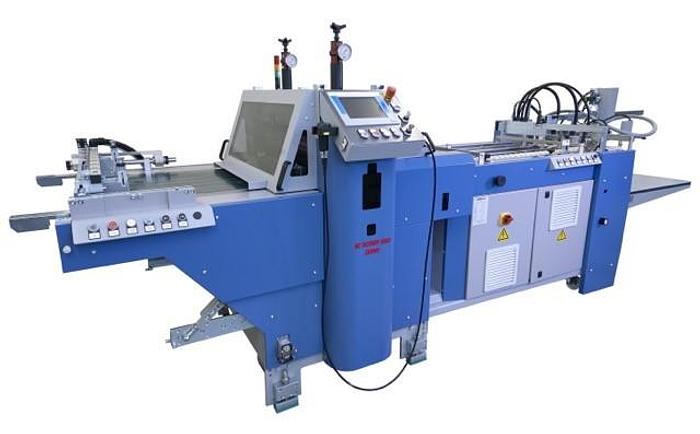

BOGRAMA SERVO
BOGRAMA SERVO
Contact us for price
Location:Čestlice, Czechia
or
Call +420 222 512 626
Specifications
| Manufacturer | BOGRAMA |
| Model | SERVO |
| Condition | New |
| Type | New |
| Capacity max. | 12000 cycles / h, 165 m / min (depending on format and quality) |
| Flat stacker | F550 Suction loading head |
| Loading | vacuum belt and ball bar, length 1500 mm |
| Sheet positioning | 2 pairs of positioning rollers and side alignment (left side) |
| Product disposal | for sheets outside the tolerance register |
| Upper / lower tool | magnetic cylinder for flexible die-cutting dies |
| Diameter of the die cylinder | 813 mm / 32 " |
| Lightness | 1.2 mm, with 1.0 mm counter plate |
| Output height | 940 mm |
| Working width max. | 550 mm |
| Sheet dimensions | min. 297 x 210 mm, max 550 x 750 mm |
| Cutting dimensions | min. 55 x 65 mm, max 530 x 730 mm |
| Product thickness | min. approx. 80 g / m2, max. approx. 0.5 mm |
| Mobility | fixed installation |
| Space requirements | approx. 4100 mm x 1500 mm (l x w) |
| Weight approx | 3000 kg |
| Punch cylinder diameter | 813 mm / 32 " |
| Display | touch screen |
| Waste disposal (internal cuts) | unit with 5 air nozzles for blowing out internal cuts |
| Compressed air | 6 bar, customer-provided, ISO 8573-1 |
| Waste disposal (internal cut-outs) | unit with 5 air nozzles for blowing out internal cuts |
| Drive | servo-motor |
| Power supply | 3 x 400 VAC / N / PE 50/60 Hz / 32 A (standard) |
