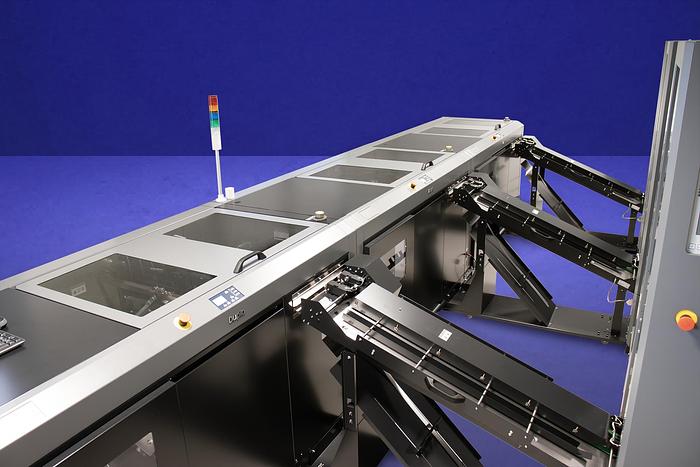

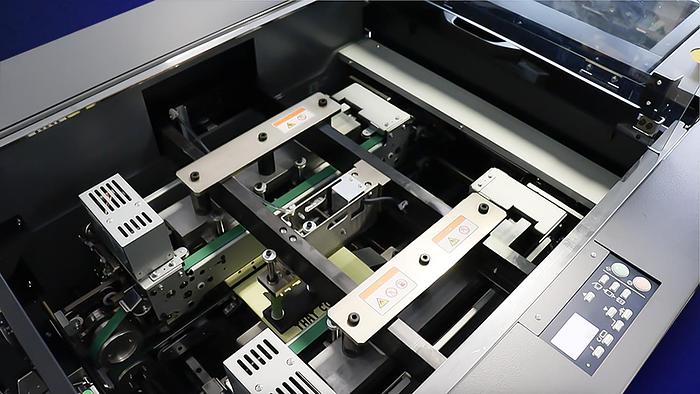

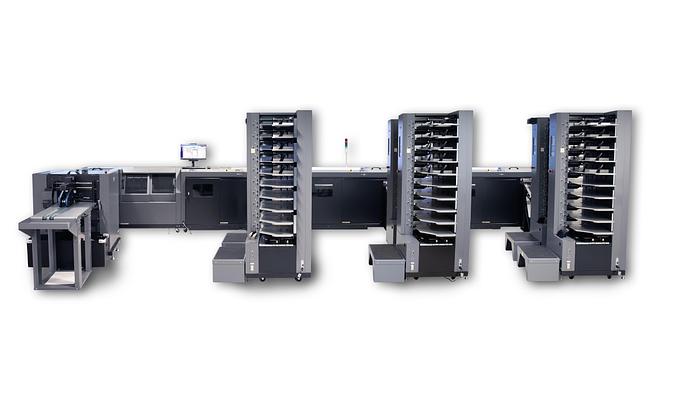

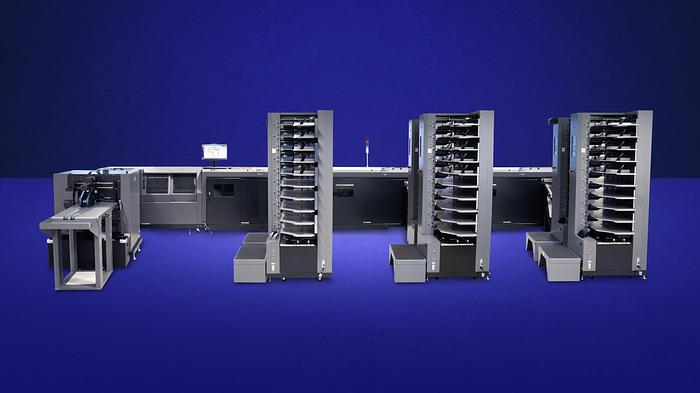

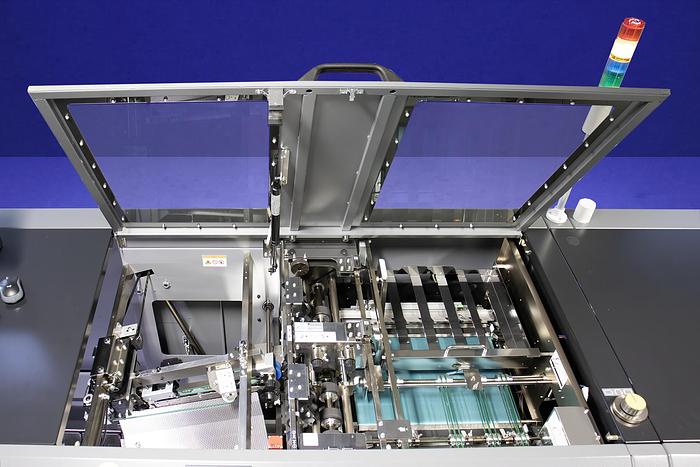

DUPLO iSaddle SENSHI
DUPLO iSaddle SENSHI
Contact us for price
Location:Čestlice, Czechia
or
Call +420 222 512 626
Description
TOP model V1 line from DUPLO. Fully automatic setting in 60 seconds. Thanks to the creasing and folding before sewing, a very flat binding is achieved. Possibility of processing a booklet up to 3 mm thick (120 sheets 80 gsm), 2-4 Hohner sewing heads. The machine is finished with a three-cut with the possibility of double production.
Specifications
| Condition | New |
| Stock Number | . |
| Type | New |
| Paper size mm max | 356 (W) x 610 (L) |
| Min | 120 (W) x 210 (L) |
| Uncut size of the brochure | mm |
| Head - heel x forehead (single production) | Max 356 (W) x 304 (L) Min 120 (W) x 75 (D) |
| Trimmed brochure size | mm |
| Head - heel x forehead (double production) | Max 174 (W) x 304 (L) Min 114 (W) x 75 (D) |
| Min 90 (w) x 75 (d) | 1 staple in each brochure |
| Speed of 5 brochures / hour | 4,500 = up to 40 pages |
| Paper weight g / m2 | 64 / -300 |
| Maximum booklet thickness | 3 mm (30 sheets x 80 g / m2) |
| Cropped brochure size | mm |
| Sewing heads as standard | 2 Hohner |
| Folding rollers | Automatic setting |
| Grooving settings | Automatic gap adjustment |
| Intelligent loading from multiple magazines from the dsc10 / 60i | Yes, the possibility of loading from any hopper |
| PC control system | Windows OS |
| Max. number of towers | 6 x DSC10 / 60i |
| Power supply | 110-250v / 50 / 60Hz |
| Speed a5 brochures / hour | 4,500 = up to 40 pages |
| Intelligent loading from multiple trays of dsc10 / 60i | Yes, the possibility of loading from any hopper |
| Pc control system | Windows OS |
