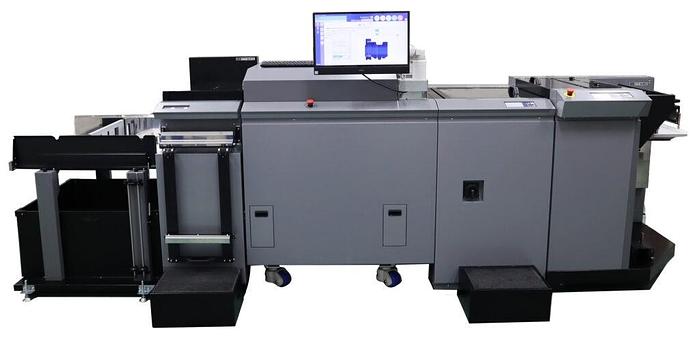

Duplo DSM 1000

Automatic die-cutting machine Duplo DSM-1000

The guillotine cutting machine DSM-1000 is a unique compatible production die-cutting machine intended for die-cutting work in low to medium cost digital and offset printing. The machine uses the standard die-cutting system with blade heights of 23.6 mm and operates on the principle of sheet/board die-cutting with a maximum die-cut pressure of up to 40 t, maximum blade length up to 5 m and maximum substrate weight up to 600 gsm. To ensure precise die-cutting of jobs from digital printing, the machine is already equipped in standard equipment with register cameras for detection of registration marks. The device enables operation in a 3-in-1 die-cutting mode, i.e. 3 die-cutting cycles per arch pass. This feature allows the use of small-format dies even when cutting a multi-up sheet and thus reduces tooling costs. DUPLO DSM 1000 can furthermore be complemented with an automatic waste separation module for separation of trim and waste. The new DUPLO DSM 1000 is an ideal solution for production low-cost operations that require high performance, easy conversion of the machine and high quality of production.
