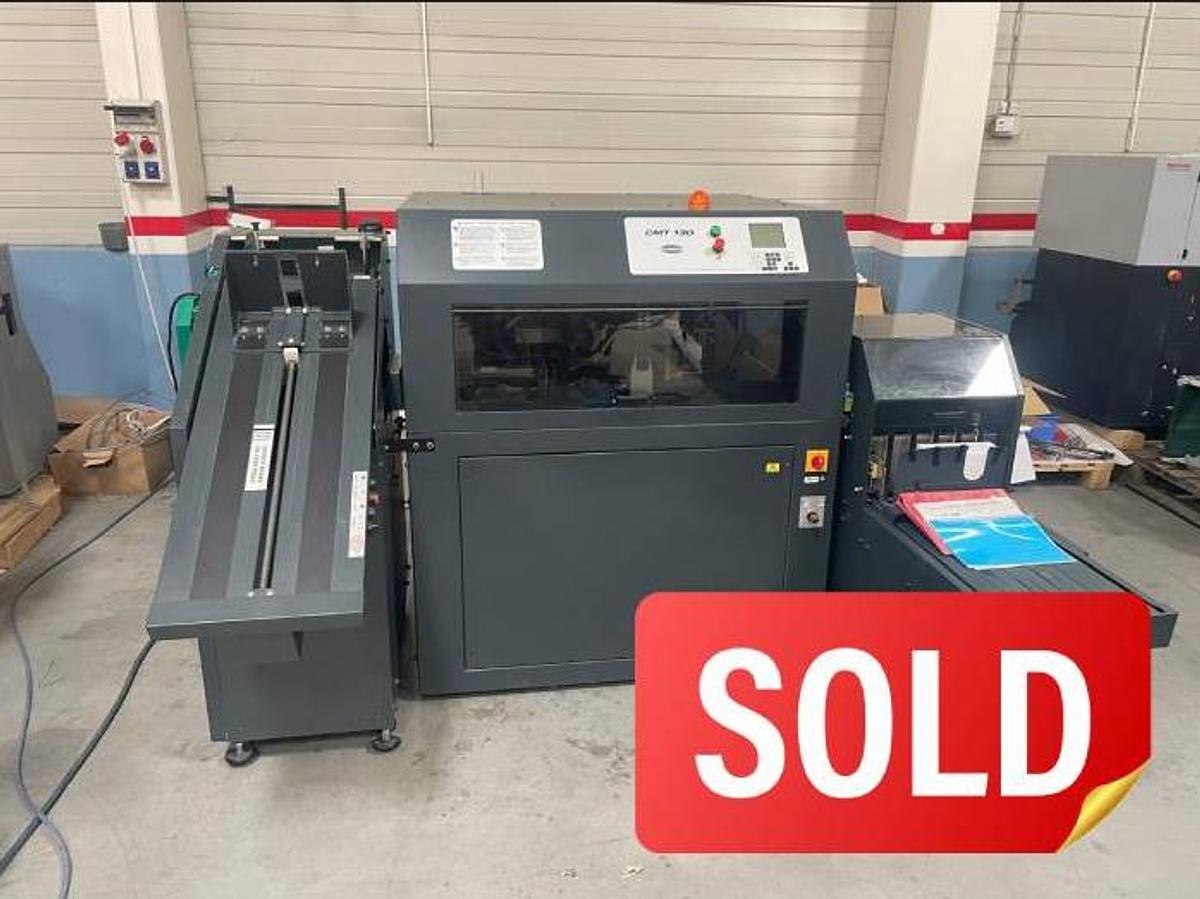

Challenge CMT 130

Year: 2010 Condition: good Configuration:

• concept with one knife
• automatic feeder
• automatic vertical unloader
• fully automatic adjustment
• machine without tooling required
• two knives

Technical parameters:

• max. size (before trimming) - 330 x 241 mm
• max. size (after trimming) - 305 x 229 mm
• min. size (after trimming) - 148 x 102 mm
• max. thickness - 51 mm
• min. trimming on all sides - 2.5 mm
• number of working programs - 99
• adjustment time - approximately 10 s
• max. speed - 200 bindings / h
• weight - 680 kg
• dimensions - 1520 x 1320 x 1450 mm
• connection - 230 V, 50/60 Hz, 3-phase, 20 A or 380/415VAC, 50 Hz 3-phase
