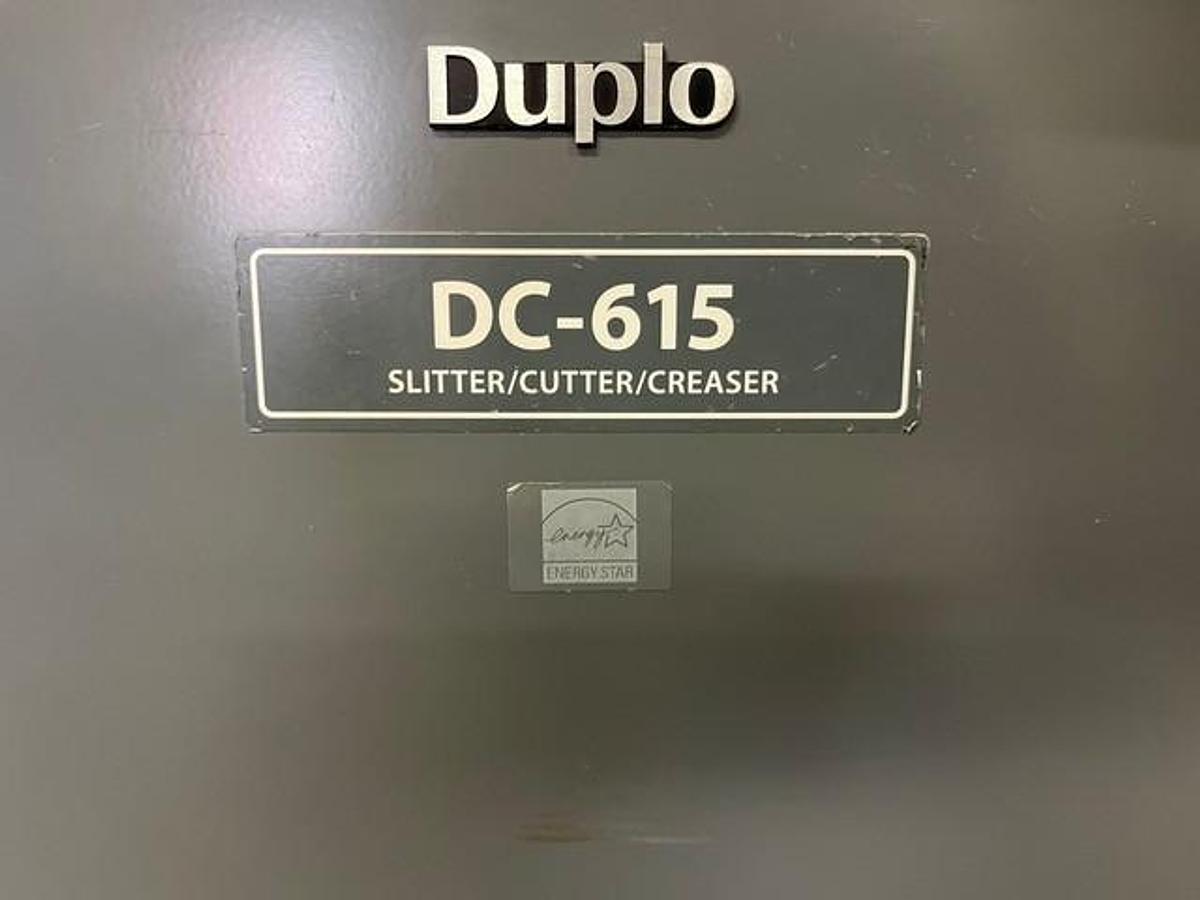

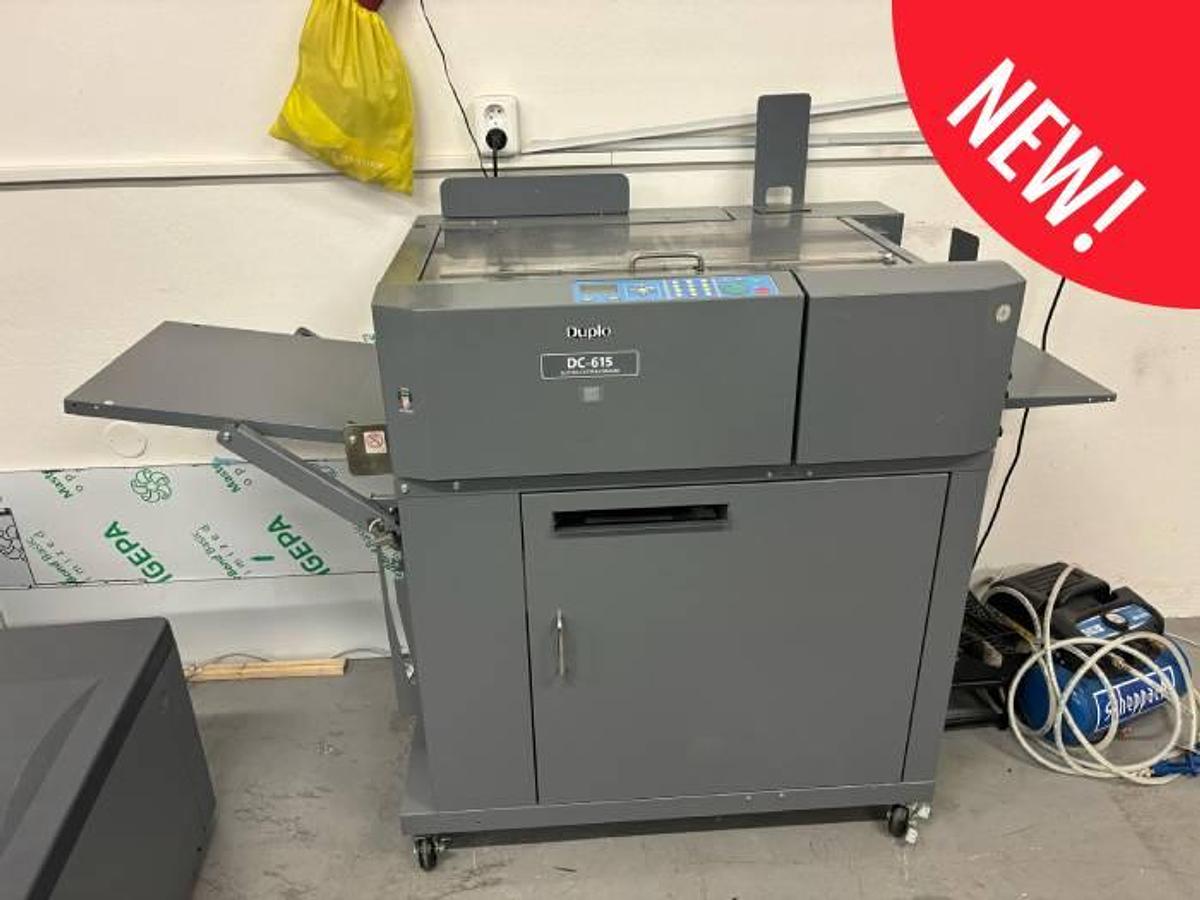

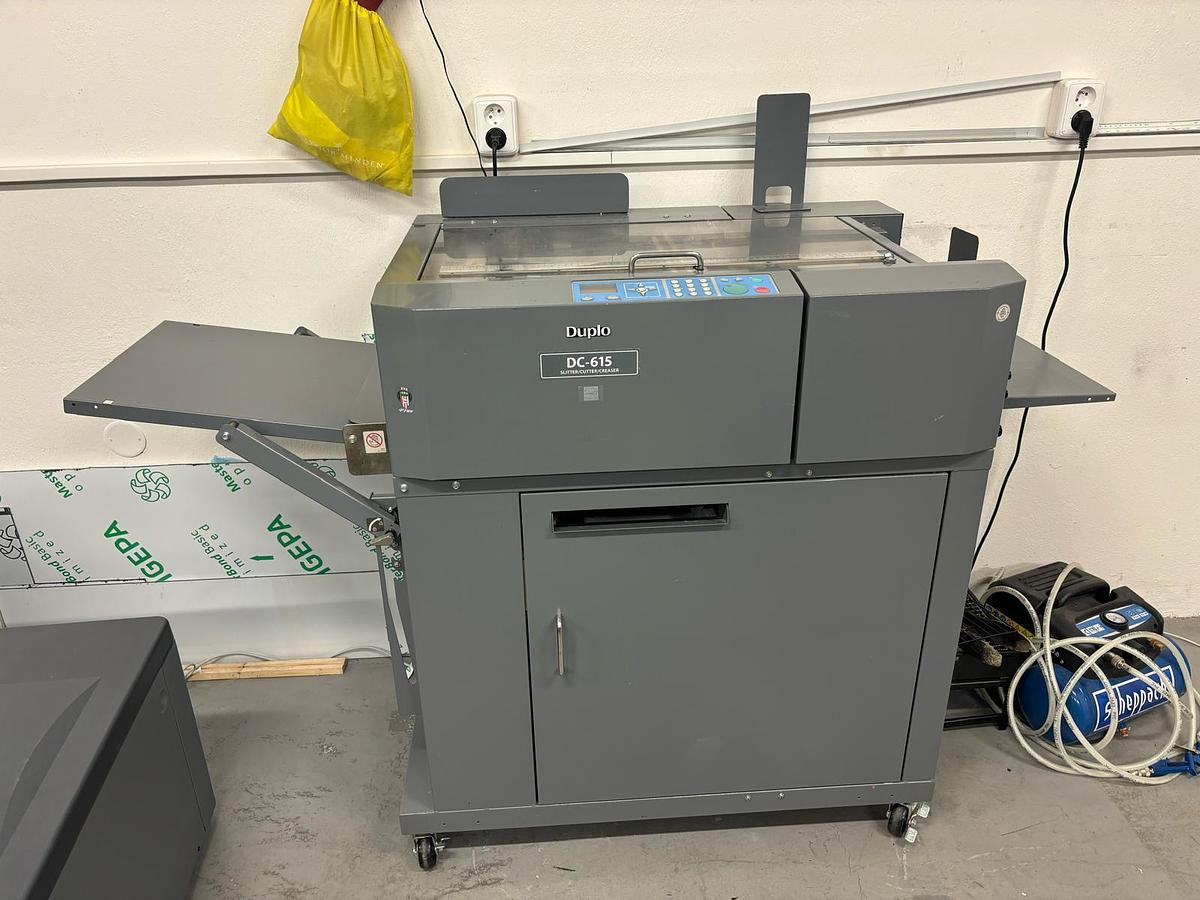

DUPLO DC 615

Year: 2009 Condition: good Technical parameters:

• maximum working arch format 320 x 650 mm
• minimum working arch format 210 x 210 mm
• paper grammage range 110 to 300 g/m2
• minimum product size 48 x 85 mm (business card)
• tolerance of longitudinal cut ± 0.3 mm
• tolerance of transverse cut ± 0.3 mm
• width of side trim 3.2 – 55 mm from paper edge
• transverse cuts / arch 15
• dies / arch 10 (3 depth levels of die)
• loader capacity 100 mm
• unloader capacity 100 mm
• number of programs 80
• machine power supply 230 V; 0.7 A; 100 W
• machine weight 132 kg
• dimensions - 1600 x 621 x 1054 mm
