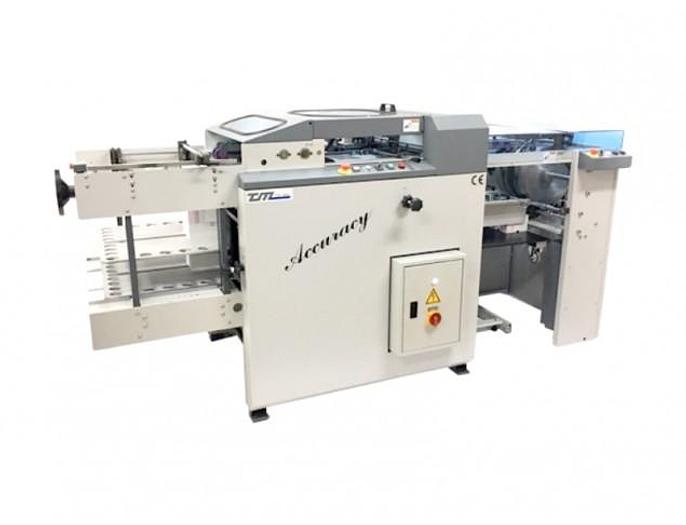

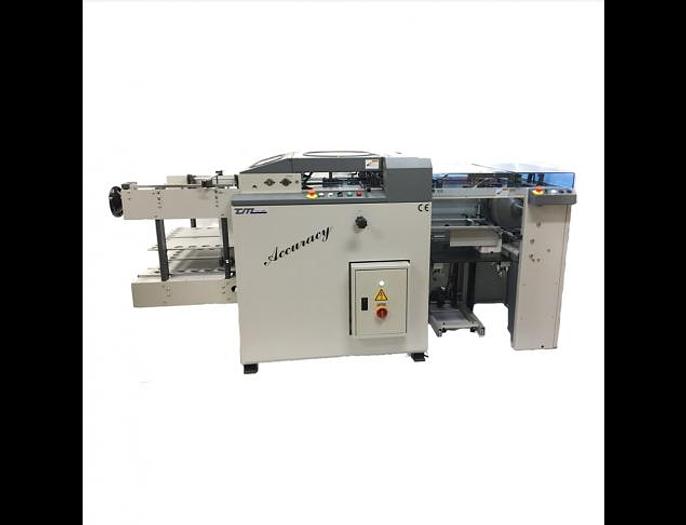

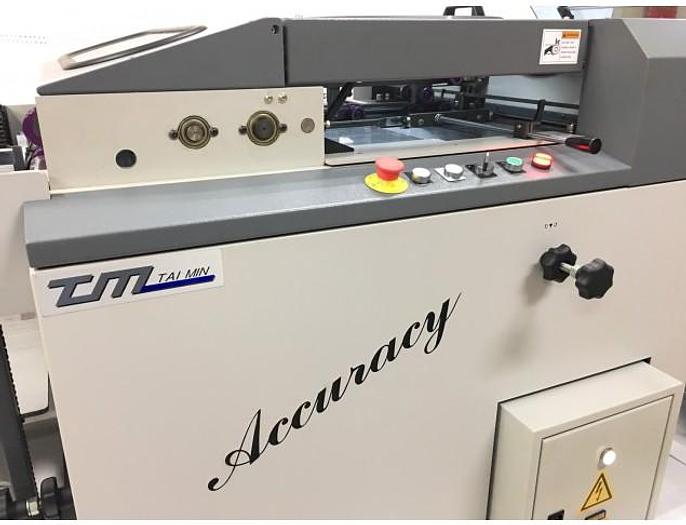

Automatic perforating machine TM AT-1

Automatic perforating machine TM AT-1

Contact us for price

Location:Čestlice, Czechia

orCall +420 222 512 626

Description

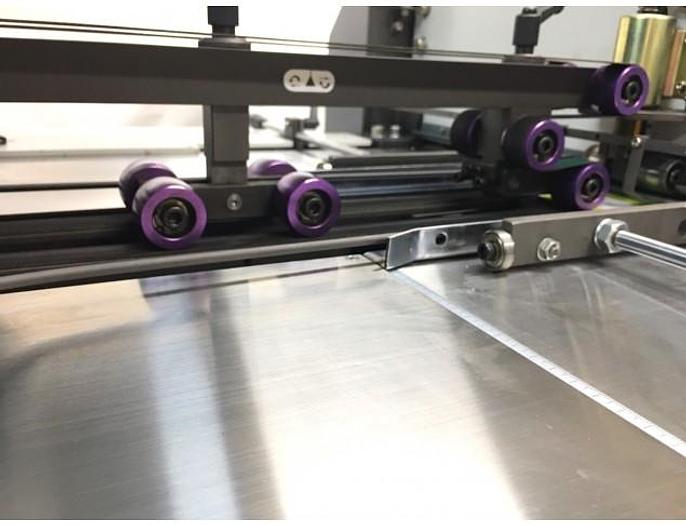

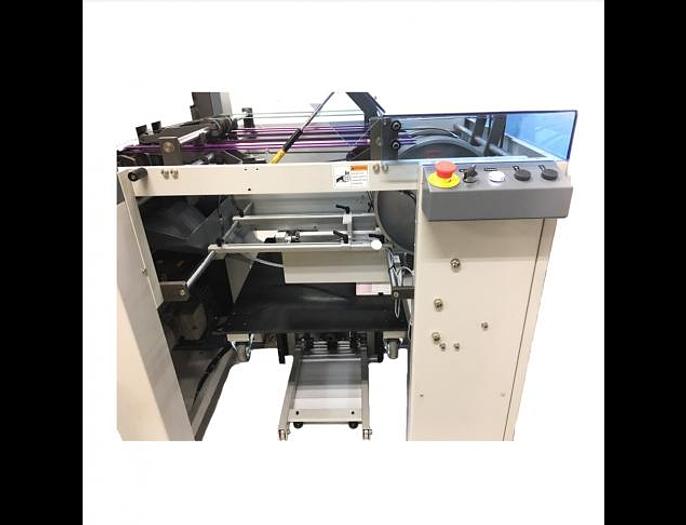

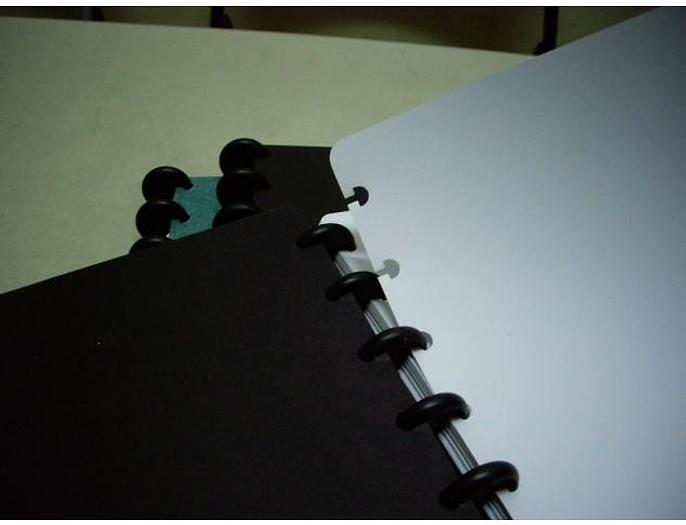

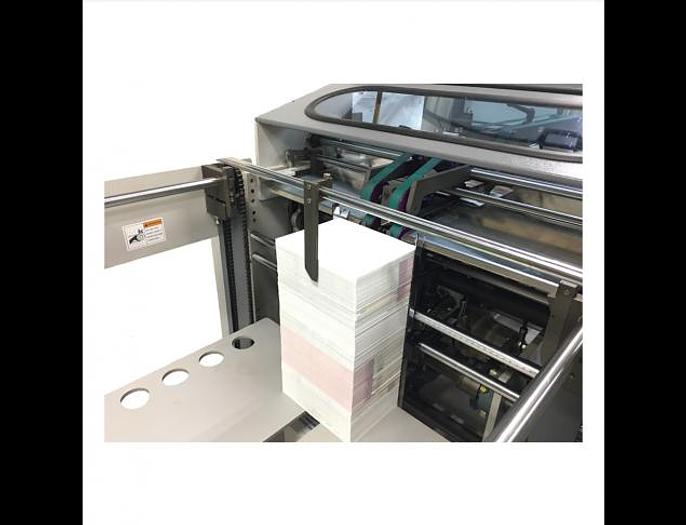

TM AT-1 is an industrial automatic perforating machine for the production of calendars and other products requiring perforation. There are several models available in the TM offer, which differ by a maximum working width of up to 380 mm and up to 550 mm. With the possibility of perforating the paper up to the perforation of the cardboard to a thickness of 2 mm. The device is very robust and is equipped with a non-stop loader and a drum unloading system for a jogger or a high-capacity unloader, in the case of cardboard perforation, the sheets are unloaded into a scale on the output conveyor belt. Sheet transport is ensured by a special gripper, which can be set to load sheets / sets from 0.5 mm to 2.5 mm, thanks to this system it is possible to perforate several sheets at once within one work cycle.

Specifications

ManufacturerTM
ModelAT-1
ConditionNew
TypeNew
Maximum working width380/550 mm
Performanceup to 130 cycles / min
Maximum perforation thickness0.5 - 2.5 mm
Grammage70 - 300 gsm
Weight1200 kg
