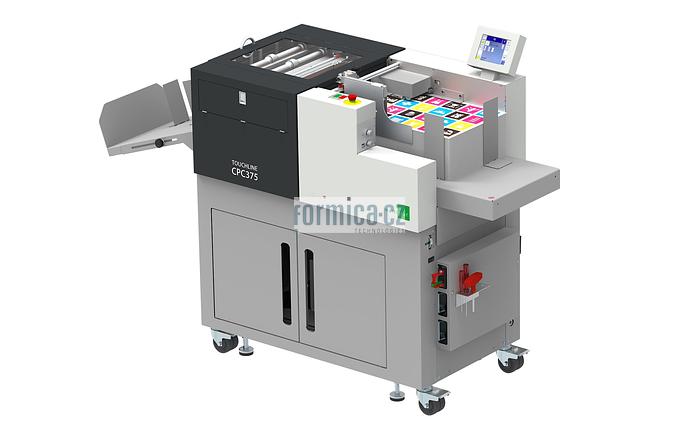

TOUCHLINE CPC 375 multigraph
TOUCHLINE CPC 375 multigraph
Location:Čestlice, Czechia
Description
The most powerful of the Touchline family will provide you with powerful creasing, perforation and cutting in one with high performance in professional quality. The Touchline CPC375 is an extension of the Touchline family of devices. The new CPC375 is a powerful cutting, creasing and perforating system that is able to cut perforated paper weighing 80 to 400 g / m2 and perforate material weighing up to 300 g / m2. Longitudinal and transverse cutting, professional cross-breaking (positive and negative) and perforation (temporal or continuous) in the longitudinal or transverse direction are the main functions of the Touchline CPC375. The patented unit allows quick and easy tool changes without the need for auxiliary tools. The tools are detected electronically, the working depth is selected on the touch screen and the system is fully set automatically.
Specifications
Manufacturer | Multigraf |
Model | TOUCHLINE CPC 375 |
Condition | New |
Type | New |
Height in the loader | 180 mm |
Min. size of sheets | 105 x 148 mm |
Max. sheet size | 375 x 660 mm, 375 x 1050 mm with table extension |
Maximum speed | 5000 A4 / h, 6000 A5 / h |
Max. number of operations | 20 / arch |
Min. distance | 1 mm |
Number of tools 2 | perforation strips / max. 4 rotary heads / |
Types of perforation | 11, 17, 26 TP1 |
Number of tools | 2 creasing tools including 2 creasing bars |
Min. Sheet size | 105 x 148 mm |
Max. Sheet size | 375 x 660 mm, 375 x 1050 mm with table extension |
Max. Number of big / arch | 20 |
Max. number of bigs / arch | 20 |
Max. speed | 5000 A4 / h, 6000 A5 / h |
Paper weight - perforation | 80 - 300 gsm or max. 0.3 mm |
Paper weight - creasing | 80 - 400gsm or max. 0.4 mm |
Max. Number of operations | 20 / arch |
Min. Distance | 1 mm |
