Foliant Gemini C400A

Foliant Gemini C400A

Contact us for price

Location:Čestlice, Czechia

orCall +420 222 512 626

Description

Year: 2008 / 2023

Condition: good

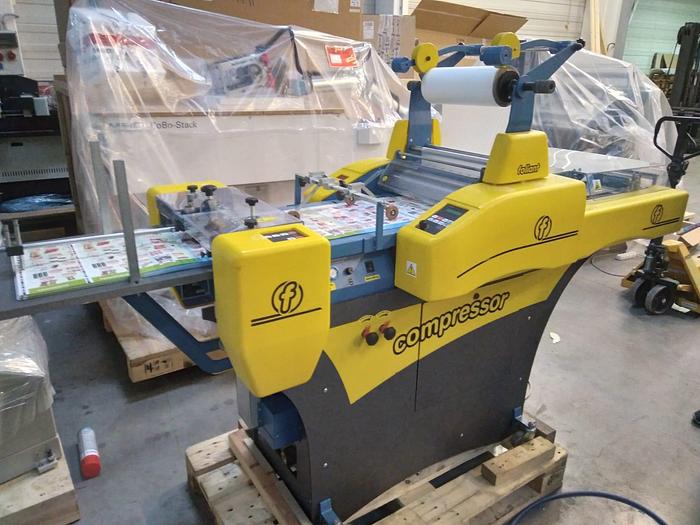

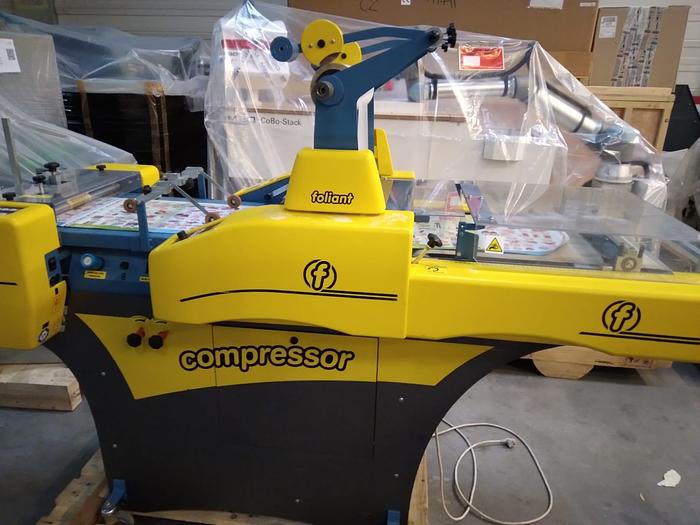

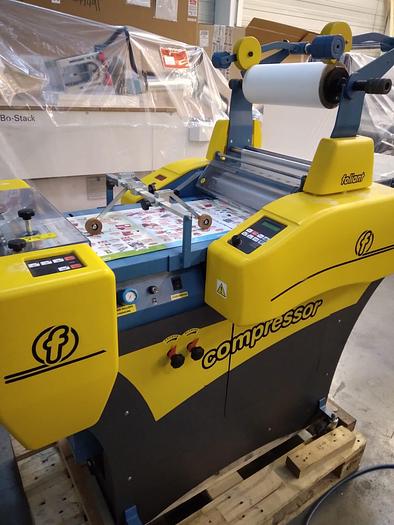

The Foliant Gemini C 400A is a fully-automatic high pressure laminating machine (laminator and separator) developed for digital output. The machine is equipped with a pneumatic pressure system of laminating rollers with an easy thrust control. A small compressor is integrated inside the machine frame. The machine has been designed with an operating width of 14.96” (380 mm) and it represents an ideal choice for professional single-side lamination in digital shops and all other print shops, printing and processing sheets up to B3+ size (the largest format is 14.96” x 22.83” (38 cm x 58 cm), with a special option even 14.96” x 25.98” (38 x 66 cm). Maximum speed is up to 15 meters/min.

 The machine’s main feature is a pneumatic pressure system in a heavy duty mechanism enabling to achieve a very high working pressure, one single phase 220 – 240 V supply cable, a small integrated compressor inside the machine frame (i.e. no external source of pressured air is required), a nice design and easy machine operation. The machine is supplied with a modular stand covered with designed side panels as a standard accessory. An RU 400 Reception Unit and/or a Jogger 400 for storing the laminated sheets can be supplied as an option.




Max Speed: 15 meters/minute

Feeding: Automatic

Feeding System: Automatic

Feeder’s Load Capacity: 9.84” (25 cm)

Overlap Control: In-run screw control

Overlap Accuracy: ± 2 mm

Separation: Automatic

Paper Weight: 115 – 350 gsm

Integrated Compressor:    Included

Main Rollers Pressure System: Pneumatic

Minimum Sheet Size: 7.87” W x 11.81” L (20 cm x 30 cm)

Maximum Sheet Size: 14.96” W x 22.83 L (38 cm x 58 cm)

Maximum Performance: 1,800 B3 sheets/hour

Warm Up Time: 5 minutes

Modular Stand: Included

Nylon Films Processing Module: Optional

Reception Unit: Optional

Jogger: Optional

Module for Sheets 14.96” x 25.98”(38 cm x 66 cm): Optional

Non-sticky Pressure Roller: Optional

Film Supply Roll Shaft: Optional

Specifications

Year2008
ConditionUsed
Stock Number3440
