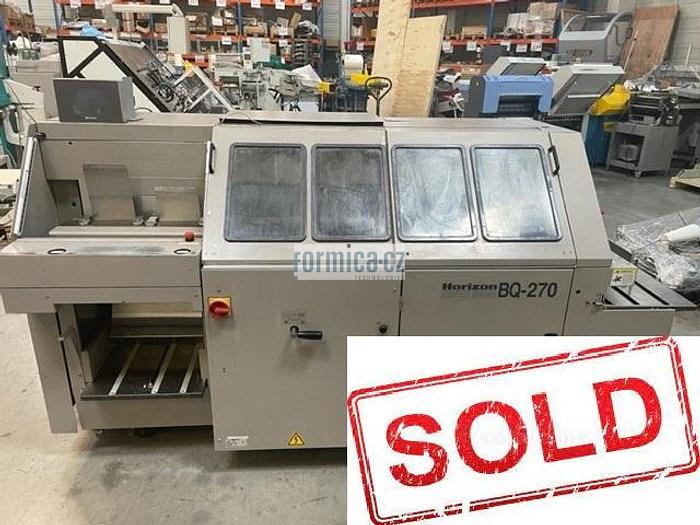

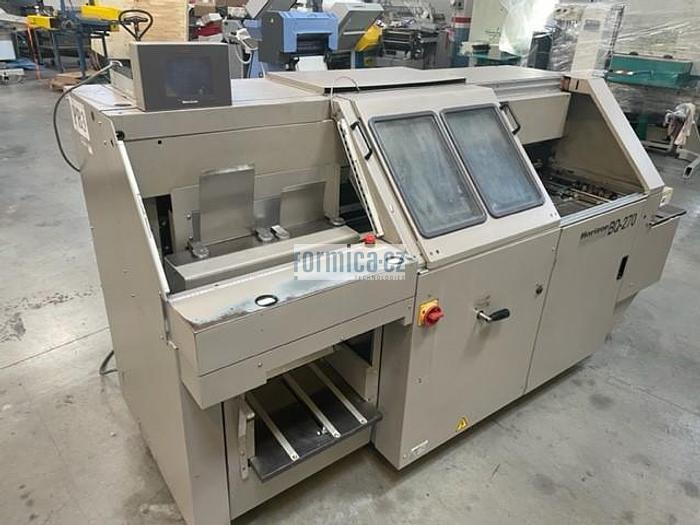

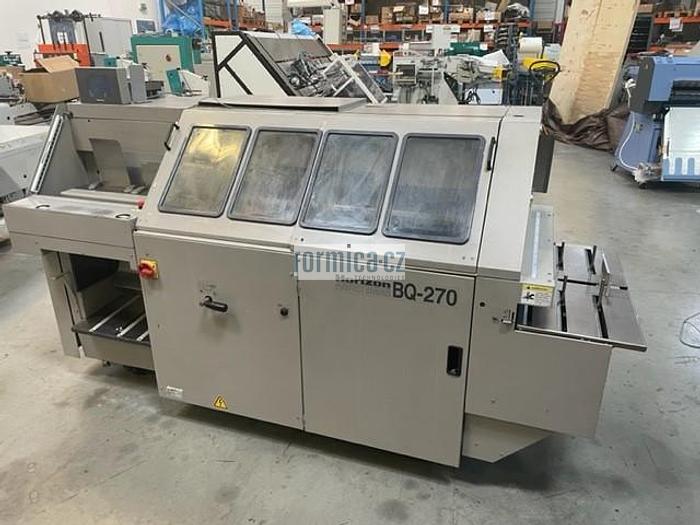

Horizon BQ 270 Hotmelt
No longer available
Horizon BQ 270 Hotmelt
Location:Čestlice, Czechia
Description
Year: NA
Condition: functional
Perfect binding machines
Counter: approx. 700 tis

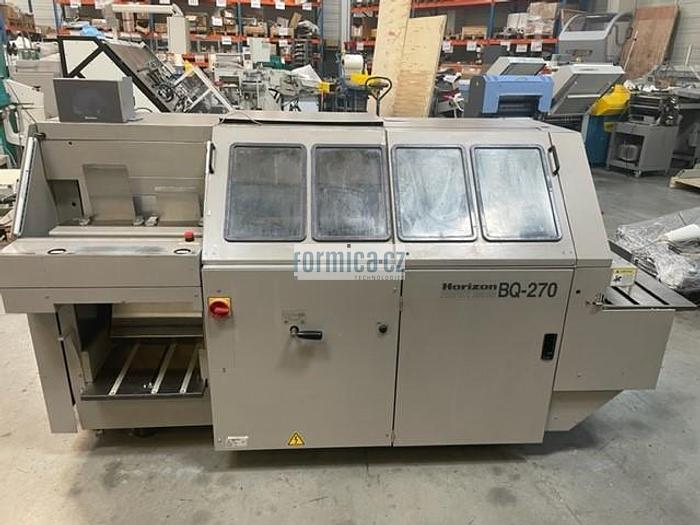

Horizon BQ-270
one-clamp perfect binder
- clamps: 1
- spine gluing: Hotmelt
- sight gluing: hotmelt
- book block thickness: integrated monitoring station (outside the clamp)

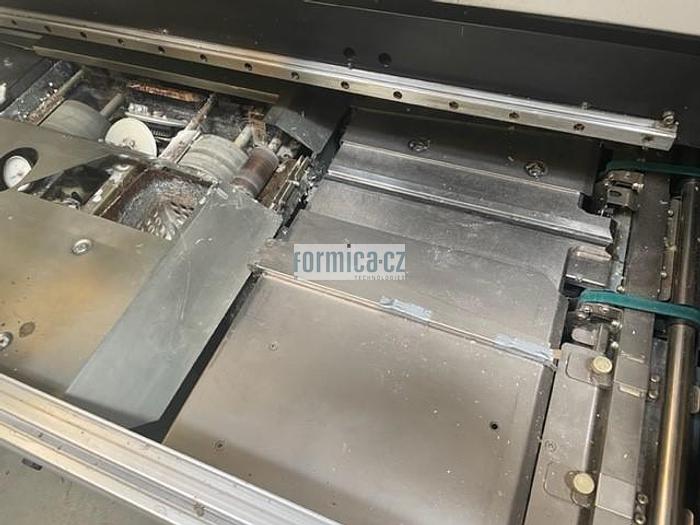

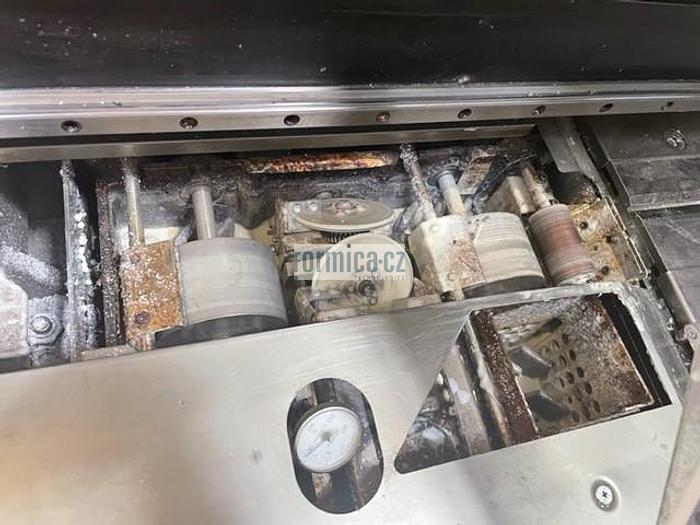

- milling section
- milling depth: adjustable

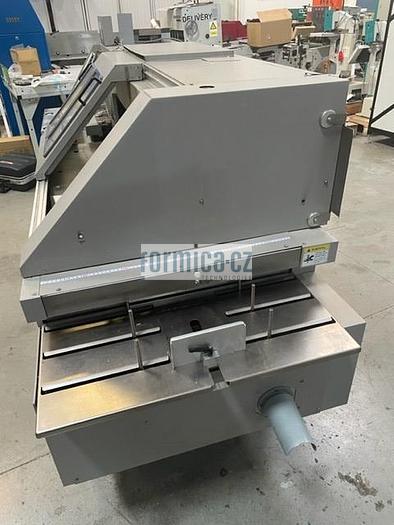

- cover feeder: suction drum feeder with 4x scoring
- cover size:max. 660 x 320mm; min. 240 x 135mm
- sheet size: max: 320 x 310 mm; min: 135 x 115 mm
- book thickness: max. 50mm; min. 1mm
- cover weight range: 90 - 300 g/sqm
- cover pile hight: max. 70mm
- speed: max. 500 cycles/h
- dimensions: 2.720 x 910 x 1.545mm
- weight: 900kg

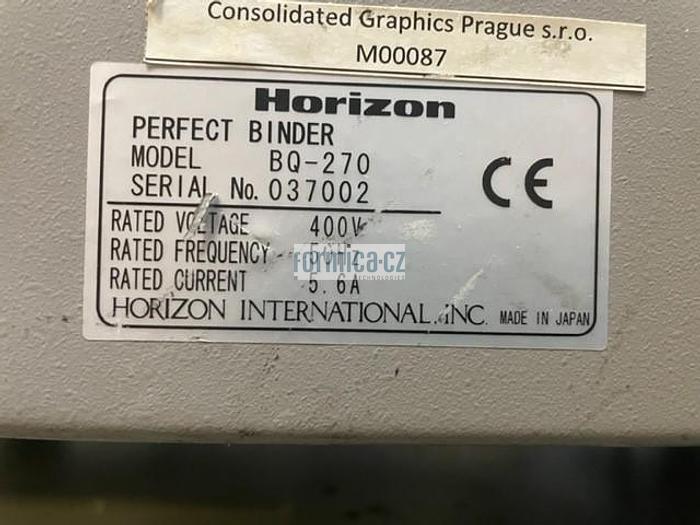

- power: 400V/ 50Hz - 2,7kW
Specifications
Condition | Used |
Stock Number | 3472 |
